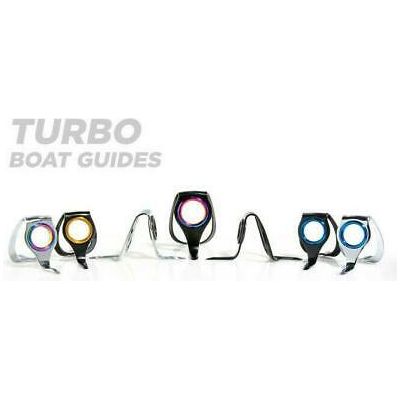

- Ideal for use on med-heavy to extra-heavy boat rods.
- Heavy gauge one piece stamped stainless steel frames.
- Frames available with bright Chrome or Black Chrome finishes.
- Ultimate protection from corrosion & added strength for durability.
- Available in quality Halide or Zirconia rings in PVD coated Holographic, Blue, or Gold Titanium Nitride.
Height A: Bottom of the foot to bottom of the ring ID
Height B: Bottom of the foot to top of ring ID
Height C: Total guide height
|
ZIRCONIA RING |
|
|
|
||||||||
|
Model |
Model |
Model |
Model |
Model |
Height A |
Height B |
Height C |
Weight |
Ring ID |
Foot Length |
Total Length |
|
BZBTR-8 |
BZCTR-8 |
HZCTR-8 |
HZBTR-8 |
GZBTR-8 |
6.15 mm |
9.55 mm |
14.58 mm |
1.4 gm |
5.38 mm |
6.80 mm |
28.76 mm |
|
BZBTR-10 |
BZCTR-10 |
HZCTR-10 |
HZBTR-10 |
GZBTR-10 |
6.59 mm |
11.85 mm |
17.85 mm |
2.7 gm |
6.80 mm |
7.50 mm |
39.30 mm |
|
BZBTR-12 |
BZCTR-12 |
HZCTR-12 |
HZBTR-12 |
GZBTR-12 |
7.85 mm |
14.60 mm |
20.55 mm |
3.3 gm |
8.20 mm |
8.53 mm |
41.95 mm |
|
BZBTR-16 |
BZCTR-16 |
HZCTR-16 |
HZBTR-16 |
GZBTR-16 |
10.30 mm |
19.60 mm |
26.11 mm |
6.3 gm |
10.45 mm |
13.25 mm |
52.97 mm |
|
BZBTR-20 |
BZCTR-20 |
HZCTR-20 |
HZBTR-20 |
GZBTR-20 |
16.65 mm |
28.88 mm |
34.75 mm |
12.9 gm |
13.50 mm |
16.15 mm |
68.65 mm |
|
BZBTR-25 |
BZCTR-25 |
HZCTR-25 |
HZBTR-25 |
GZBTR-25 |
22.80 mm |
39.25 mm |
47.40 mm |
21.9 gm |
17.40 mm |
21.00 mm |
88.00 mm |
