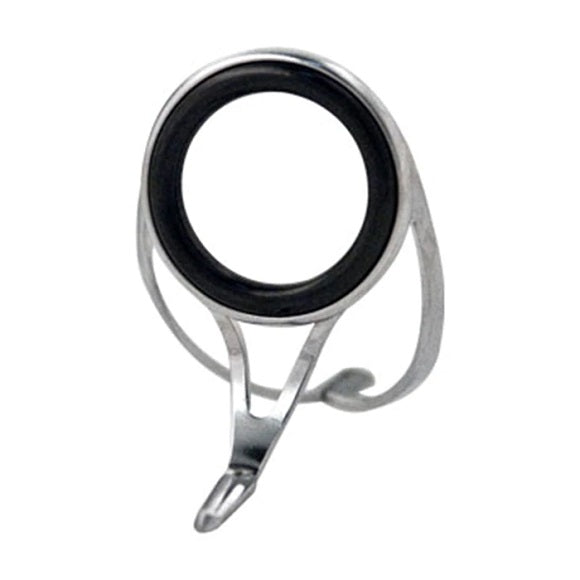

DCRLS - DURALITE CHROME SS RING LOCK SPIN GUIDE

Regular price $2.35 USD
Regular price Sale price $2.35 USD
Sale Sold out
Shipping calculated at checkout.
MPN
  • Typhoon™ Guide’s high ring location is ideal for spinning and casting applications
  • Available in solid titanium alloy and 316SS frame material
  • Quad-Leg design increases stability
  • Increased material gauge adds strength
  • Ring Lock™ system eliminates ring loss

Measurement Key:

Height A: Bottom of the foot to bottom of the ring ID

Height B: Bottom of the foot to top of ring ID

Height C: Total guide height



DURALITE RING





Model

Model

Height A

Height B

Height C

Weight

Ring ID

Foot

Total Length

DCRLS-8

DBRLS-8

4.69 mm

10.09 mm

12.06 mm

0.5 gm

5.4 mm

6 mm

21.35 mm

DCRLS-10

DBRLS-10

5.52 mm

12.52 mm

14.91 mm

1.0 gm

7 mm

6.9 mm

23.85 mm

DCRLS-12

DBRLS-12

6.4 mm

14.75 mm

17.37 mm

1.4 gm

8.35 mm

9.2 mm

30.40 mm

DCRLS-16

DBRLS-16

8.74 mm

19.24 mm

22.43 mm

2.4 gm

10.5 mm

9.9 mm

34.5 mm

DCRLS-20

DBRLS-20

10.74 mm

23.77 mm

26.23 mm

4.1 gm

13.03 mm

12.63 mm

49.23 mm

DCRLS-25

DBRLS-25

17.6 mm

34.35 mm

39.51 mm

7.1 gm

17.75 mm

13.54 mm

56.68 mm

DCRLS-30

DBRLS-30

20.95 mm

44.42 mm

48.88 mm

10.5 gm

23.47 mm

16.5 mm

67.7 mm

DCRLS-40

DBRLS-40

27.84 mm

55.95 mm

61.03 mm

15.5 gm

28.11 mm

16.8 mm

71.91 mm

DCRLS-50

DBRLS-50

37.50 mm

78.00 mm

83.00 mm

25.0 gm

40.40 mm

22.0 mm

88.0 mm
