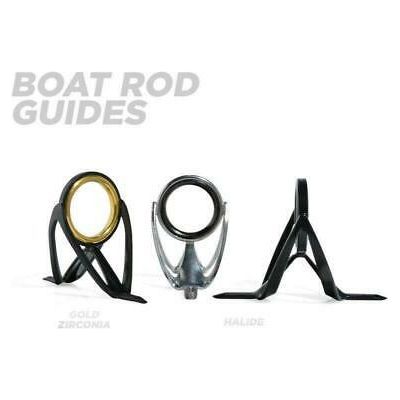

Boat Rod Guides
- Premium quality Titanium Nitride Ring.
- Heavy duty brass frame construction.
- Ideal for use on med-heavy to extra-heavy boat rods.
- Frames available in bright Chrome and Black Chrome finishes.
Height A: Bottom of the foot to bottom of the ring ID
Height B: Bottom of the foot to top of ring ID
Height C: Total guide height
|
HALIDE RING |
|
|
|
|||||
|
Model |
Model |
Height A |
Height B |
Height C |
Weight |
Ring ID |
Foot Length |
Total Length |
|
BBLG-8 |
BLG-8 |
6.45 mm |
12.25 mm |
14.40 mm |
2.3 gm |
4.50 mm |
6.30 mm |
27.50 mm |
|
BBLG-10 |
BLG-10 |
8.15 mm |
13.75 mm |
16.85 mm |
3.0 gm |
5.75 mm |
7.25 mm |
32.45 mm |
|
BBLG-12 |
BLG-12 |
10.20 mm |
16.00 mm |
20.25 mm |
4.9 gm |
6.65 mm |
9.75 mm |
42.35 mm |
|
BBLG-16 |
BLG-16 |
13.25 mm |
22.25 mm |
26.25 mm |
9.7 gm |
9.25 mm |
12.75 mm |
55.75 mm |
|
BBLG-20 |
BLG-20 |
15.80 mm |
26.80 mm |
30.50 mm |
15.0 gm |
12.45 mm |
14.50 mm |
59.25 mm |
|
BBLG-25 |
BLG-25 |
18.60 mm |
32.00 mm |
38.00 mm |
21.0 gm |
16.00 mm |
15.00 mm |
64.10 mm |
|
BBLG-30 |
BLG-30 |
23.55 mm |
44.25 mm |
50.25 mm |
29.4 gm |
21.60 mm |
16.00 mm |
70.75 mm |
